Stop production long enough to preserve the failed part, document its service conditions and identify whether the cause is material, heat treatment, design, assembly or operation. By following a controlled investigation, you can separate a genuine AISI 1030 steel problem from an undersized section, a damaged surface or an unsuitable replacement—and specify the next part correctly.
Key takeaways
- Quarantine the part before cleaning, straightening or restarting the machine.
- Use fracture features to distinguish overload, fatigue and corrosion-assisted cracking.
- Confirm grade, material condition and heat-treatment records before blaming the steel.
- Match replacement bars to loads, service conditions, dimensions and required test certificates.
Quarantine the part and preserve the failure evidence
Stop the machine and quarantine the failed AISI 1030 component before cleaning, straightening or returning it to service. A second operation can erase the evidence that separates overload from fatigue, heat-treatment error, corrosion-assisted cracking or assembly damage.
- Photograph the component in its installed position, including supports, fasteners, mating surfaces and any unusual marks.
- Record service hours, load or torque, speed, temperature, lubrication, environment and the event immediately preceding failure.
- Remove the part without grinding, hammering, welding or forcing the fracture surfaces together.
- Protect the fracture with clean, dry wrapping; keep broken pieces, swarf and deposits in separate labelled bags.
- Quarantine mating parts, failed fasteners and nearby components until an investigator records their condition.
Mark the part with its location, orientation, drawing number, heat number and removal date. Do not wire-brush rust or solvent-clean the fracture; residue can show whether fretting, galling, corrosion or hydrogen-related cracking contributed. Preserve a matching unused part and the material certificate for comparison.
For AISI 1030 failure problems in Indore, add the supplier, heat number, transport history and storage exposure to the evidence log. Ask an independent laboratory to photograph and examine the fracture before hardness testing, sectioning or chemical cleaning. A surface hardness reading taken after damage or heating cannot reconstruct the original condition.
Read the fracture before choosing a remedy
Use the fracture’s origin, crack pattern and surface texture to separate overload, fatigue, brittle fracture, wear and environmentally assisted cracking before selecting a repair. Inspect visually and dimensionally, then use magnetic-particle testing, fracture-surface examination and metallography.
| Failure mode | Fracture clues | Confirmation |
|---|---|---|
| Overload | One final break; rough, fibrous tearing with plastic deformation or necking | Compare the fractured area with the applied load and section size |
| Fatigue | Crack starts at a groove, pit, inclusion, seam, fold or sharp transition; beach marks or ratchet marks lead to a smaller final overload zone | Magnetic-particle testing and microscopy reveal the origin |
| Brittle fracture | Little necking; flat, bright facets, cleavage-like features and a sudden crack path | Metallography and hardness testing identify an excessively hard or embrittled condition |
| Wear or galling | No single tensile fracture origin; scoring, adhesive transfer, seizure and dimensional loss appear on contact surfaces | Measure lost material, alignment, lubrication and contact pressure |
| Environmentally assisted cracking | Branching, corrosion staining or cracks from pits, threads, weld heat-affected zones or plated surfaces | Check service chemicals, moisture, hydrogen exposure and crack morphology |
A fatigue origin hidden under a grinding burn or corrosion pit can look like an overload break after cleaning. Do not polish or grind the surface before photographs and examination. These distinctions narrow AISI 1030 steel problems to the actual mechanism instead of replacing a sound grade with a harder, unsuitable one.
Verify the 1030 grade, condition and heat treatment
A mill certificate proves the grade only when its heat number matches the marking or traceability record for the failed component. Obtain the certificate and purchase order, then verify the heat number on the part, packaging, or retained cut end. “1030 equivalent” does not establish interchangeability.
- Compare the certificate’s chemistry with AISI 1030: carbon should fall within the specified range for the governing product standard, alongside the listed manganese and impurity limits.
- Use positive material identification on an unaffected section. X-ray fluorescence can check many alloying elements but does not reliably confirm carbon; use spark optical emission spectroscopy or laboratory combustion analysis when carbon is decisive.
- Record the product form, diameter, delivery condition, heat-treatment record, hardness, tensile results and any mill ultrasonic or magnetic-particle report. A missing heat number makes the certificate non-traceable.
Do not compare one hardness reading with a generic 1030 datasheet. Measure several points on the surface and core, avoiding the fracture, machined edges and visibly heated areas. Metallographic examination can reveal ferrite-pearlite, martensite, tempered martensite, decarburization, or an abnormal heat-affected zone.
| Condition | Evidence to seek | Failure significance |
|---|---|---|
| Hot-rolled or annealed | Softer, ferrite-pearlite structure | Low strength or excessive deformation |
| Normalized | Refined ferrite-pearlite and more uniform hardness | Unexpected soft zones indicate processing variation |
| Quenched and tempered | Tempered martensite with controlled surface-to-core hardness | Untempered martensite or a soft core points to incorrect treatment |
| Induction-hardened | Hard case over a softer core; measured case depth | A surface-only test can falsely suggest through-hardening |
Test the component against its design and service conditions
A failure is a material problem only after the part survives comparison with its actual design and service conditions. Reconstruct the load at failure, not the load on the drawing: record torque, bending force, speed, temperature, service hours, shock events and lubrication or corrosion exposure.
1. Recalculate stress at the fracture location using measured dimensions. A smaller machined diameter, an unlisted keyway or a sharp shoulder can create a stress concentration that defeats an otherwise acceptable 1030 steel.
2. Check machining and surface condition with dimensional inspection, visual examination and magnetic-particle testing. Grooves, grinding burns, laps, seams, forging folds and corrosion pits can start fatigue cracks without a bulk material defect.
3. Check assembly conditions: shaft alignment, bearing fit, bolt preload, runout, interference, clearance and contact pattern. Misalignment or excessive preload can bend a component that passed material testing.
4. Compare hardness from the surface into the core and measure case depth against the drawing. A hard, shallow induction- or flame-hardened layer over a soft core can fail under bending; surface hardness alone does not prove through-hardening.
5. Match the measured service load and environment to the supplied condition. Confirm heat number, chemistry, delivery condition and test results, then examine the fracture origin metallographically if the calculations and assembly checks pass.
For an AISI 1030 component failure solution in Indore, add supplier traceability and inspection records, and check corrosion during storage or transport. If the evidence points to overload, poor geometry, assembly error or operating abuse, changing steel grade will not correct the cause.
Specify and verify the replacement before machining

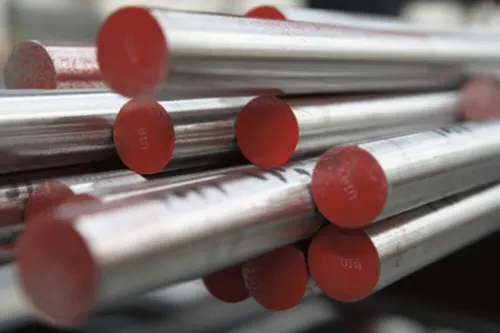

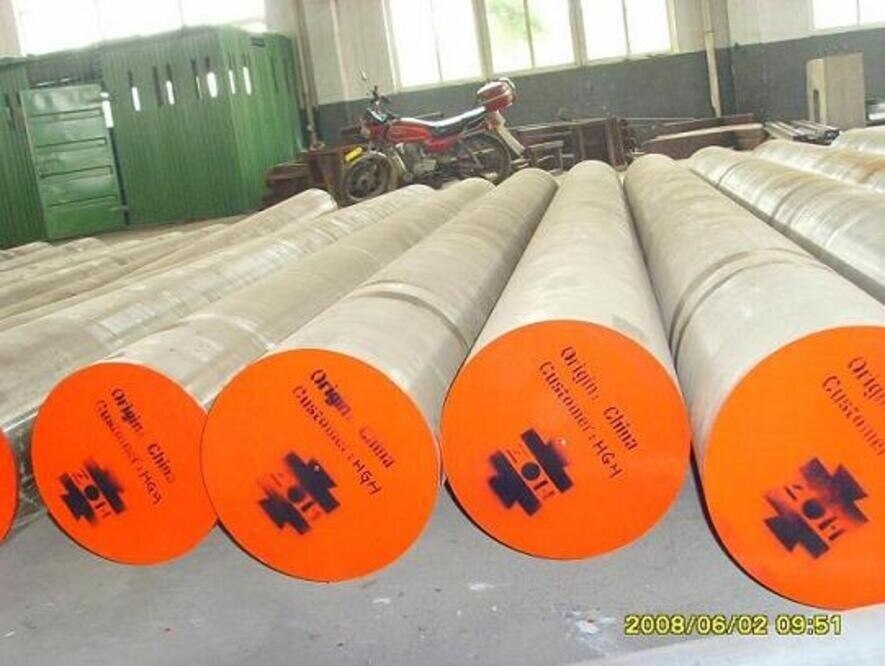

Order AISI 1030 replacement bars in Indore against a written purchase specification, not a verbal grade description. “1030 equivalent” does not prove interchangeable chemistry, condition or performance.
1. State the governing product standard: ASTM A29/A29M for hot-wrought bar or ASTM A108 for cold-finished bar. Specify diameter, length, straightness, surface-quality limits and machining allowance.
2. Require the heat number on the bar bundle and mill test certificate. The certificate must identify chemical analysis, delivery condition, heat treatment, hardness or tensile results, dimensions and the manufacturer. Check that the heat number on the certificate matches the tag and bar marking.
3. State the required condition—hot-rolled, normalized, annealed, cold-finished, quenched-and-tempered or induction-hardened. These choices change hardness, ductility, residual stress, surface condition and cutting behaviour.
4. Add ultrasonic or magnetic-particle inspection when the failed part was highly stressed, large-section, fatigue-sensitive or suspected of containing laps, seams or cracks. Verify the report’s acceptance level, not merely the words “tested.”
5. Test a received sample before machining. Use an independent chemistry check and hardness readings at the surface and core; compare the results with the drawing, heat-treatment record and service requirement.
Do not substitute AISI 1010, 1035, 4140 or another “similar” grade without recalculating strength, toughness, weldability and heat-treatment response. A cold-finished bar is also unsafe as a hot-wrought substitute when residual stress, tolerance or surface defects contributed to failure. Steel Mart can help procure a traceable bar, but your inspection record must establish interchangeability.
Frequently asked questions
What should you do first when an AISI 1030 component fails?
Stop the machine, quarantine the failed part and preserve its position, fracture surfaces, fasteners and surrounding debris. Do not clean, straighten or cut it before inspection.
How can a fracture reveal the cause of AISI 1030 failure?
Inspect the fracture for fatigue beach marks, a single overload plane, brittle features, corrosion pits or damage from machining and assembly. Photograph it before handling and use laboratory fractography when the evidence is unclear.
Which AISI 1030 details must you verify before replacing a failed component?
Check the mill certificate, heat number, chemical composition, product form, delivery condition, hardness, tensile results and heat-treatment records against the drawing and purchase specification.
What service conditions should you test during an AISI 1030 failure investigation?
Review actual loads, shock, bending, alignment, stress concentrations, temperature, corrosion exposure, lubrication, operating cycles and assembly torque against the design assumptions.
How do you specify AISI 1030 replacement bars in Indore?
Provide the required diameter or section, length, quantity, condition, heat treatment, mechanical properties, certification, testing and machining allowance. Verify the heat number and documents before machining.
